Energy Saving Transparent Video Wall P15 Shopping Mall Clear LED Display

Energy Saving Transparent Video Wall P15 Shopping Mall Clear LED Display

  • High Light

    clear led display

    ,

    transparent led video wall

  • Pixel Pitch
    15mm
  • Brightness
    >1000nits
  • Cabinet Wegiht
    9kg/pc
  • Cabinet Size
    1000*500mm
  • Working Temperature
    -20℃ - +60℃
  • Viewing Distance
    15-450m
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-ITP1501
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

Energy Saving Transparent Video Wall P15 Shopping Mall Clear LED Display


Energy Saving Transparent Video Wall P15 Shopping Mall Clear LED Display

 >> Features


 1. High transparency rate: 89% transparency rate without affecting day-lighting.No need other heat dissipation system.

 2. Light weight :PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.

 3. Fast installation:Fast lock systems ensure fast installation and saving time and labor cost.

 4. Easy maintenance :Repairing single SMD without taking of single module of entire panel.

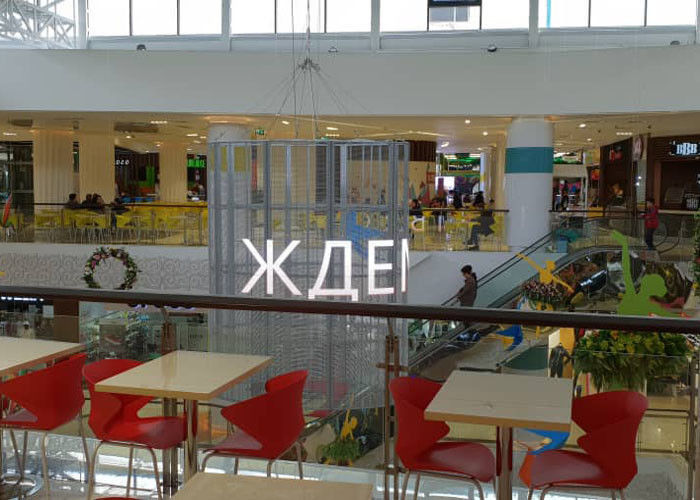

 5. Wide application:Any building with glass wall. Such as shopping mall, 4S store, jewelry store, clothing store, watch store, theatres, hotels, airport, museum, etc.



Item Parameters
Pixel Pitch 15mm
Pixel Density 65,746dos/sqm
LED Package SMD3528
Cabinet Size 1000*500mm
cabinet Resolution 64*32dot
Cabinet Materials Aluminum
Cabinet Wegiht 9kg/pc
Brightness >1000nits
Driving Mode Static scan
Refresh Rate >1920hz
Grey Level 256levels
Viewing Angle 140°/60°
Viewing Distance 15-450m
Power Input AC110V - 220V ±15%, 50HZ
Max Power Consumption 350W/sqm
Ave. Power Consumptio 110W/sqm
Working Temperature -20℃ - +60℃
Life Span >100,000 Hours


 >> Description

 1. Good visualization: Glass based design allows the light to pass through the glass without any influence to the building structure around..

 2. Ultra-thin, and ultra-light. the installed glass display takes very little space and without any increase in the glass wall loading weight.

 3. Frameless structure glass display can directly stick to the inside part of the glass wall by special designed glue, and it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.

 4. Easy and convenient maintenance. It can be maintained from inside, safer and more convenient.

 5. Saving lighting costs of the whole building. Besides good advertising effect, LED glass display also helps lighting the glass wall.

 >> After Sales Service

1. 12 months warranty

2. Free factory training

3. 24/7H online support

4. Lifetime free repair and technical support
