Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-IFCP2972
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Viewing Distance: |
3-100m |
Brightness: |
≥800nits |
Pitch size: |
2.976mm |
Module size: |
250*250mm |
Cabinet Weight: |
8.5kg/pc |
Tube Chip Color: |
Full Color |
Viewing Distance: |
3-100m |
Brightness: |
≥800nits |
Pitch size: |
2.976mm |
Module size: |
250*250mm |
Cabinet Weight: |
8.5kg/pc |

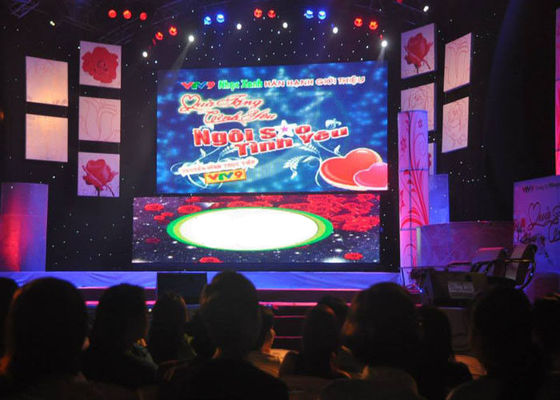

High Resolution Indoor Full Color LED Display P2.9 For Events Stage Backdrop
>> Features
1. Same cabinet design for indoor rental & fixed installation application
2. Variety pixel pitches: 2.6mm, 2.97mm, 3.91mm,4.81mm
3. There are flat & curve LED Screen, and Rear & Front maintenance for choice
4. Two cabinet size: 500mmx500mm and 500mm*1000mm
5. It very easily replaces the model & board in time; Avoiding more trouble and saving much time for after-sales maintenance.
| Item | Specification |
| Pixel Pitch | PH 2.976mm |
| Pixel Density | 112,910dos/sqm |
| LED Package | Nationstar SMD1515 |
| Module Size | 250*250mm |
| Module Resolution | 84*84dot |
| Cabinet Size | 500*500mm |
| cabinet Resolution | 168*168dot |
| Cabinet Materials | Die Casting Aluminum |
| Cabinet Weight | 8.5kg/pc |
| Brightness | ≥800nits |
| Driving Mode | 1/21scan |
| Refresh Rate | ≥2880hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/140° |
| Viewing Distance | 3-100m |
| Power Input | AC110V - 230V ±15%, 50HZ |
| Working Temperature | -20℃ - +60℃ |
| Maintenance Method | Double side |
| Life Span | >100,000 Hours |
>> Description
1. Classical and stable structure and performance.
2. Two patent protected strong locks design, realizing a combination of reliability and security.
3. Die-casting aluminium body, lightweight for easy transportation and high accuracy installation.
4. Perfectly be compatible with any existing controller and without screen shaking/quick flashing/mosaic problems.
5. Supporting installation of hanging/ground mounting, for stage/TV show/studio, and other event applications.
6. Tool-free assembly and disassembly.
>> Application
Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation, commercial advertising and other outdoor rental events.
>> After Sales Service
1. 1 years warranty
2. Free factory training
3. 24/7 hours online service
4. Lifetime technical support
