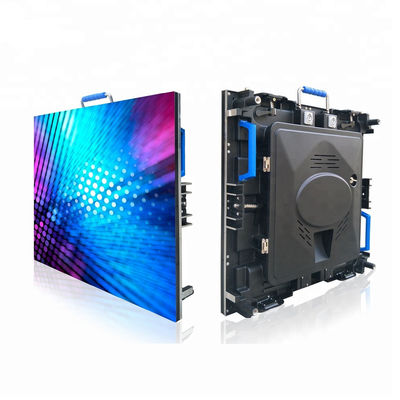

Aluminum SMD1515 600CD/M2 P2.9 Stage LED Backdrop

Aluminum SMD1515 600CD/M2 P2.9 Stage LED Backdrop

  • High Light

    P2.9 Stage LED Backdrop

    ,

    600CD/M2 Stage LED Backdrop

    ,

    SMD1515 Stage Advertising LED Display

  • Product Name
    Indoor Rental LED Display Screen
  • Refresh Rate
    3840Htz
  • Brightness
    600-800CD/m2
  • Grayscale
    65536level
  • Lifespan
    100000hrs At 50%brightness
  • Service
    Back
  • Place of Origin
    China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

Aluminum SMD1515 600CD/M2 P2.9 Stage LED Backdrop

High Resolution P2.9 Stage Backdrop Indoor Rental LED Display With 4000Hz Refresh Rate



Features

1. Same cabinet design for indoor rental & fixed installation application
2. Variety pixel pitches: 2.6mm, 2.97mm, 3.91mm,4.81mm
3. There are flat & curve LED Screen and Rear & Front maintenance for choice
4. Two cabinet size: 500mmx500mm and 500mm*1000mm
5. It very easily replaces the model & board in time; Avoiding more trouble and saving much time for after-sales maintenance.


Specification



Item MIR-2.97
Pixel Pitch PH 2.976mm
Pixel Density 112,910dos/sqm
LED Package Nationstar SMD1515
Module Size 250*250mm
Module Resolution 84*84dot
Cabinet Size 500*500mm
cabinet Resolution 168*168dot
Cabinet Materials Die Casting Aluminum
Cabinet Weight 8.5kg/pc
Brightness ≥800nits
Driving Mode 1/21scan
Refresh Rate ≥2880hz
Grey Level 256levels
Viewing Angle 140°/140°
Viewing Distance 3-100m
Power Input AC110V - 230V ±15%, 50HZ
Working Temperature -20℃ - +60℃
Maintenance Method Double side
Life Span >100,000 Hours



Description:




1. Classical and stable structure and performance.
2. Two patent protected strong locks design, realizing combination of reliability and security.
3. Die-casting aluminum body, light weight for easy transportation and high accuracy installation.
4. Perfectly be compatible with any existing controller and without screen shaking/quick flashing/mosaic problems.
5. Supporting installation of hanging/ground mounting, for stage/TV show/studio, and other event applications.
6. Tool-free assembly and disassembly.




Aluminum SMD1515 600CD/M2 P2.9 Stage LED Backdrop 0

Aluminum SMD1515 600CD/M2 P2.9 Stage LED Backdrop 1

Application



Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation, commercial advertising, and other outdoor rental events.


After Sales Service

1. 3 years warranty
2. Free factory training
3. 24/7 hours online service
4. Lifetime technical support
