640X640mm SMD2121 P5 300W/M2 Bar DJ LED Screen 64x32pixels

Place of Origin China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Minimum Order Quantity Negotiable
Price Negotiable
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Product Name P5 Indoor Led Display Cabinet Size 640*640mm,640*960mm,or Customized
Power Supply Chuanglian 110~220V Grayscale 65536level
Lifespan 100000hrs At 50%brightness Service Back
High Light

300W/M2 Bar DJ LED Screen

,

SMD2121 Bar DJ LED Screen

,

64x32pixels DJ LED Display

Leave a Message
Product Description

640X640mm SMD2121 P5 Bar DJ LED Screen 300W/M2





Features:

♦ 1. Cabinet weight is 9kg.
♦ 2. Ultra-thin high strength, toughness, high precision die-cast aluminum cabinet.
♦ 3. High precision-the size is electromechanical processing accurate to 0.1mm
♦ 4. Compatible-new structure design, meet lifting and stacking requirements, and meet indoor and outdoor requirements;
♦ 5. Fast-Installation .The cabinet is connected with up and down, left, right, and fast locking mechanism,10 seconds to complete the installation of a cabinet.



Technical Parameter for P5 INDOOR RENTAL LED DISPLAY
Module Specifications
1 Pixel Pitch 5mm
2 Led Type SMD2121
3 Pixel configuration 1R1G1B
4 Module Size 320x160mm
5 Module Resolution 64x32pixels
6 LED Chip Epistar
7 LED brand Hongsheng/Forest/ Kinglight/Nationstar/
Cabinet Specification
1 Cabinet Size 640x640mm
2 Cabinet Resolution 128x128 pixels
3 Module Qty. 2x4pcs
4 Power Supply 5V40A 200W/ 5V60A 300W
6 Cabinet Materials DIE CASTING ALUMINUM
Screen Parameters
1 Pixel density 40000dots/㎡
2 Screen Resolution according to screen size
3 Cabinet Qty. according to screen size
4 Brightness ≥1200 CD/sqm
5 Refresh rate ≥1920Hz/s
6 Scanning Mode 1/8 scan
7 Viewing Angle H:140°;V:140°
8 Viewing Distance ≥5m
9 Gray Level 16 Bit
10 Power Input AC110~240V
11 Power Comsuption Max: 1000W/㎡ Average:300W/㎡
12 MTBF--hours >10,000 hours
13 Life--hours ≥100,000 hours
14 IP Grade IP40/IP30
15 Operating Temperature -35℃~ 65℃
16 Storage Humidity 10℃~70℃RH
17 Control Syetem Colorlight/Nova/Linsn
18 Operating System Windows98/me/2000 /NT/XP
19 Power Supply 5V40A 200W/5V60A 300W
20 Maintance Access Back service/Front service
21 Video processor Colorlight/ Novastar/ Linsn/ VDWALL/ RGBLINK/ KYSTAR
22 Control mode computer /USB/WIFI/4G



Regular package:

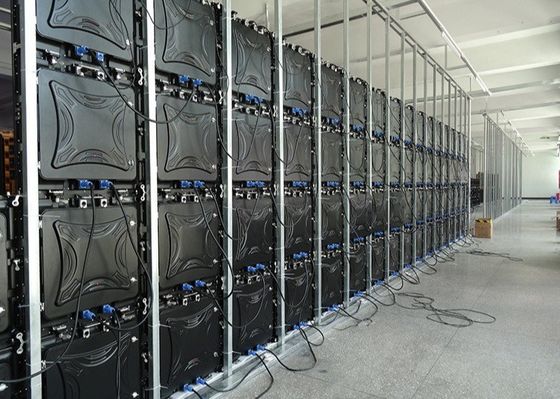

640X640mm SMD2121 P5 300W/M2 Bar DJ LED Screen 64x32pixels 0


640X640mm SMD2121 P5 300W/M2 Bar DJ LED Screen 64x32pixels 1





FAQ

1.How long could I receive the inquiry reply?

A:You will get a reply within 24 hours.



2.What kind of led display do you offer?

A:Different product offer different time frame warranty, but all product here we offer 1 year at least warranty



3.How is the after sales service?

A:We have a professional team which is in all around the world, also a service hot-line dealing with your complains and feedback. We also offer 24-hour online service to help you solving problems



4.How long will it take to deliver goods?

A:We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment
