Product Details
Place of Origin: China
Brand Name: DDW
Certification: CE ROHS
Model Number: P5
Payment & Shipping Terms
Minimum Order Quantity: 1square meter
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Pixel: |
6mm |
Screen Dimension: |
5.76m*3.84m |
Brightness: |
5500cd/m2 |
Pixel Resolution: |
64dots(W)*32dots(H) |
Refresh Frequency: |
≥1920HZ |
Warranty: |
2years |
Pixel: |
6mm |
Screen Dimension: |
5.76m*3.84m |
Brightness: |
5500cd/m2 |
Pixel Resolution: |
64dots(W)*32dots(H) |
Refresh Frequency: |
≥1920HZ |
Warranty: |
2years |
Waterproof Outdoor Full Color LED Display P6 192*192mm High Brightness 5500cd/m2
TECHNICAL PARAMETERS
|
LED Cabinet |
Dimension | 512mm*512mm |
| Monomer Module Number | 8 | |
| Power supply | 5V/40A*1 pcs | |
| Thermal discharge | anto | |
| Pixel per cabinet | 128*128dots | |
| Best viewing distance | 6M～40M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 80mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 280W/㎡ | |
| Max.Power consumption |
≤700W/m2
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Fire rate | Grade one | |
| Display Mode | ≥800*600/1024*768 |

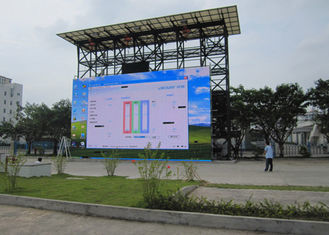

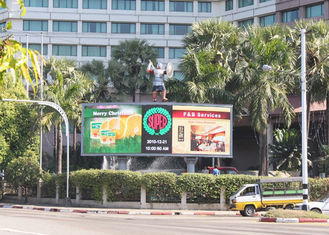

LED SCREEN PICTURE
