Product Details
Place of Origin: CHINA
Brand Name: DDW
Certification: CE,ROHS
Model Number: OES6
Payment & Shipping Terms
Minimum Order Quantity: 1square meter
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sqm per month
Pixel Pitch: |
6mm |
Material: |
Die-cast Aluminum |
Panel Dimension: |
500*500mm |
Panel Wieght: |
8.8kg |
Module Size: |
250*250mm |
Brightness: |
5000nits |
Pixel Pitch: |
6mm |
Material: |
Die-cast Aluminum |
Panel Dimension: |
500*500mm |
Panel Wieght: |
8.8kg |
Module Size: |
250*250mm |
Brightness: |
5000nits |

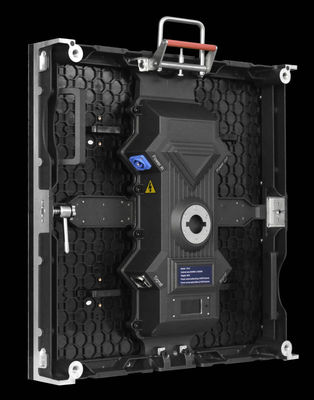

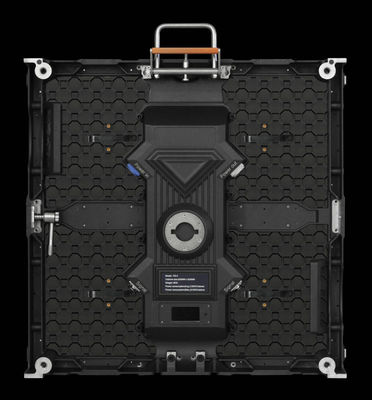

6.25mm Outdoor IP65 Rental LED Display 500X500 Die-cast Aluminum Cabinet High Brightness
Product Features
1.Quick Set up & Dismantle
2.Lightweight and slim
3.Good waterproof function
4.No fan design,no noise,save power consumption
Product Details
Specifications
Cabinet Parameter
Cabinet Size | 500*500mm |
Cabinet Material | Die-casting Aluminum |
Cabinet Weight | 8.8kg |
Cabinet Resolution | 80X80dots |
Cabinet Protection | IP65 |
Module Parameter
Pixel Pitch | 6.25mm |
Pixel Configuration | 1R1G1B |
LED type | SMD3535 |
Module size | 250*250mm |
Module resolution | 40X40dots |
Screen Parameter
Pixel Pitch | 6.25mm |
Driving Mode | 1/10 |
Refresh Rate | >2880Hz |
Brightness | >5000cd/m2 |
Power Consumption | Avg:105W/Panel Max:230W/Panel |
Grayscale | 65536level |
Viewing Angle(H/V) | 140º/140º |
Life span | 100,000 hours at 50% brightness |
IP Rating | IP65 |
Warranty | 2 years |
Rental & Stage ----Indoor & Outdoor
Fantasy Series provide cost-effective solution to rental client due to its 500X500mm cabinet size.
Fast and simple setup not only saves installation time but also labor cost saving
Its perfect performance on vivid quality absolutely brings an amazing visual feelings to audiences.
Waterproof IP65 means you don't worry about holding the event suddenly raindrops.
Package and shipping
