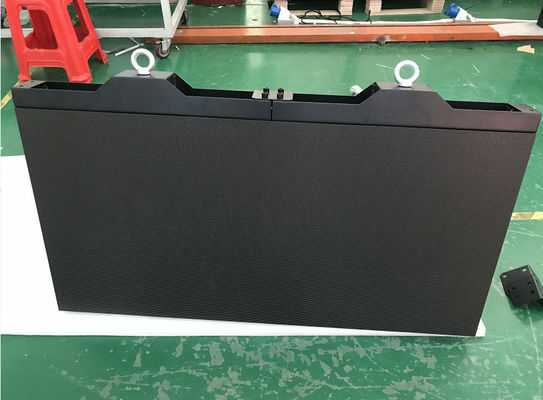

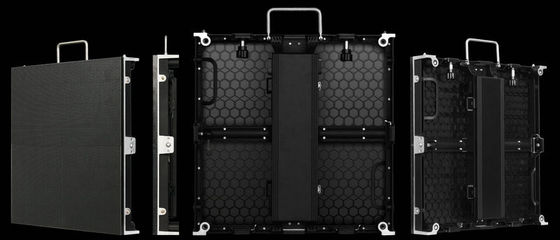

3.91mm Pitch 3000nit SMD2121 LED Advertising Video Walls

Place of Origin CHINA
Brand Name DDW
Certification CE,ROHS
Model Number OES6
Minimum Order Quantity 1square meter
Price Negotiable
Delivery Time 7-20 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 sqm per month
Product Details
Product Name P3.91 Indoor Screen Modules Warranty 3 Year
FunctionPlay Video Play Video Life Span 100000
Module Size 250*250mm Delivery Time 15 Working Days
High Light

3000nit LED Advertising Video Walls

,

SMD2121 LED Advertising Video Walls

,

3.91mm Pitch Led Curtain Display

Leave a Message
Product Description

3.91mm Pitch 3000nit SMD2121 LED Advertising Video Walls



Product Feature:

1) Super-light weight and Ultra-thin: only 7.5 kg in weight for 500x500mm panel, 80 mm in thickness

2) With special designed mask and plastic frame , the surface is very smooth and viewing angle is very large .

3) With driver IC MBI 5124 , it's of high refresh rate of 1920 hHz/s . The driver IC can be upgraded to ICN2038 with a refresh rate over 3840 Hz/s

4) With fast lock system, easy to install and dismantle;

5) Flexible installation ,can be stacked on floor or hung on truss;

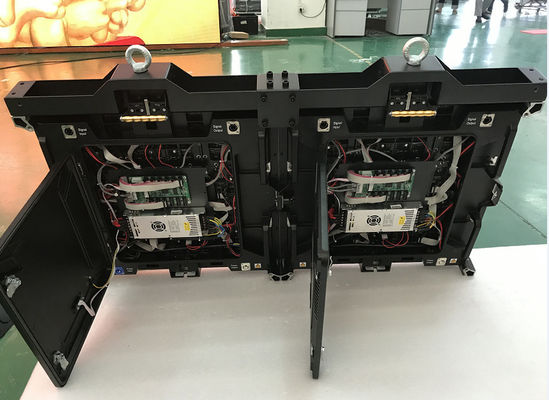

6) Front service module ,can be taken off from front for maintenance



7) The same panel is compatible with P2.84, P3.91,P4.81,P5.95 and P6.25 outdoor and indoor LED

display .


Module Parameter:

Pixel pitch 3.91mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD2121
Module size 250x250mm
Module weight 0.35kg
Module resolution 64x64dots
Module quantity per cabinet 4pcs


Cabinet Parameter:

Cabinet size 500x500mm
Cabinet material die- casting aluminum
Cabinet weight 6.5kg
Cabinet resolution 128x128 dots
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 65410dots/m²
Brightness ≥1200 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 3.9m
Max.power consumption 890W/m²
Avg.power consumption 330 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 65536
Refresh rate ≥1920Hz
MTBF ≥50000 hours
Lifespan ≥100000 hours
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, internet etc.




3.91mm Pitch 3000nit SMD2121 LED Advertising Video Walls 0



In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
