P12 P16 Outdoor Led Advertising Screens Sport Perimeter LED Display Full Color

Product Details

Place of Origin: Shenzhen ,China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Model Number: DDW-OFCP1201

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Plywood or Flight Case

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

outdoor advertising led display

,

outdoor fixed led display

Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
12mm
Brightness:
6000 To 8000cd/sqm
Protection Level:
IP65
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
12mm
Brightness:
6000 To 8000cd/sqm
Protection Level:
IP65
Product Description


P12 P16 Outdoor Led Advertising Screens Sport Perimeter LED Display Full Color


 P12 Outdoor full color perimeter LED display adopts physical and virtual pixel technology
which makes the picture more clear and vivid, no flicker and blind dots. It can be assembled,
disassembled and repaired very easy.
Wide application field: advertising LED display, stadium perimeter LED display, mobile led display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, stage performances and so on.


 >>Features & Technical Specification


 1. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, stage performances and so on.
 2. High Contrast and Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image of our LED screen system.
 3. Good quality LED chip: Supplied by Nichia, Cotco cree,Toyota,Silan.Optec,& other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
 4. Very high quality and Clear vivid image quality: even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
 5. High Brightness of LED Display: 7500-nit brightness (for outdoor full color)(more than 2000 nits brightness for indoor full color) capacity throughout product lifetime of the LED display6. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.


 >>Parameter table



Pixel pitch 12mm LED encapsulation DIP 346
Pixel configuration 1R1G1B View Angle 120°/90°
Module Resolution 16x16dots Module size 192x192mm
Pixeldensity 6,944dots/sqm Brightness >8000nit
Working Temp -20°C~+60°C Max power consumption 850W/sqm
Working Humidity 10%~90% Average power consumption 300W/sqm
Working voltage AC110/220V Driving Method 1/2 scan,constant current
Optimum viewing distance >10m Refresh rates ≥1200Hz
MTBF >5,000hours   R:625nm±5.0nm,IV:400-450mcd
Gray level RGB/8192/14bit LED parameter G:525nm±2.5nm,IV:1,800-2,200mcd
Life span >100,000hours   B:470nm±2.5nm,IV:350-450mcd
Blind sport rate <0.00001 Display Function Graphic,Animation,and Video
Warranty period 1 years Usage fixed/rental
Signal sources input DVI,VGA,SDI,HD-SDI,TV,HDTV,NTSC/PAL,S Video,etc

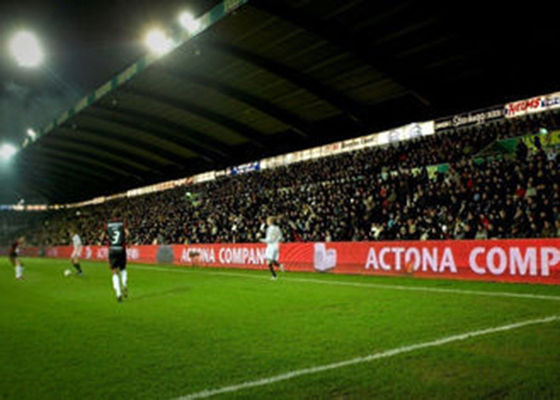

Wide Application Outdoor / indoor Sports perimeter, football stadium, basketball stadium, soccer stadium etc.


 1. Designed according to the client's atandards.
 2. Usage: Outdoor / Indoor Sports perimeter, football stadium, basketball stadium, soccer stadium etc.
 3. Waterproof: IP65 front, IP43 rear. The system can stand all weather condition.
 4. High luminance and uniformity, wide view angle and various content show.
