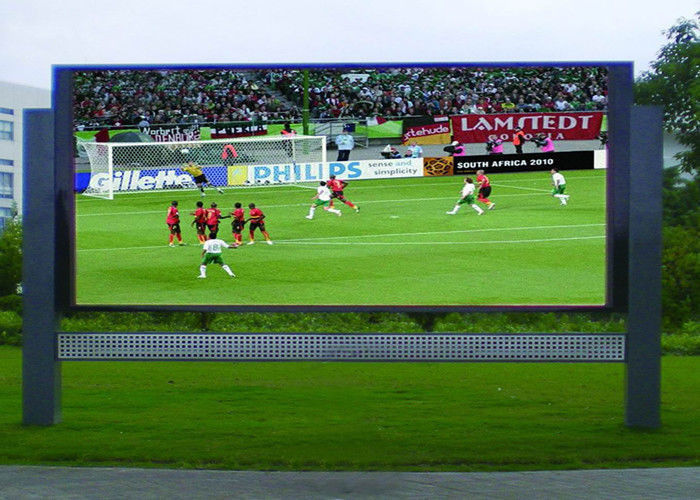

Wall Mounted P16 Outdoor Full Color LED Display Panels IP65 Quick Installation

Place of Origin Shenzhen ,China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Model Number DDW-OFCP1607
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Plywood or Flight Case
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Display Function Video Pixel Density 3906/sqm
Cabinet Weight 80kg Processing 16 Bit
LED Configuration 1R1G1B Usage Outdoor
High Light

outdoor advertising led display

,

outdoor fixed led display

Leave a Message
Product Description

Wall Mounted P16 Outdoor Full Color LED Display Panels IP65 Quick Installation



 >> Product Description

 (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.



 (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.



 (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.



 (4) Line-Double technology is adopted for the picture adjustment.



 (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.



 (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

Spec and Parameters:



Pixel Pitch: 16mm
LED configuration : 1R1G1B
Brightness : 8000 nits
Pixel density : 3906/sqm
Viewing angle : 120°H and 60°v
Lifetime : 60000 hrs
Power consumption/tile : average 450w/m2, max 800wm2
Operation power voltage : 200-240 V / 50-60 HZ
Tile/size (W×H×D) in mm : 1024×1024×120
Tile/display surface in sqm : 1.05
Cabinet Material: Steel
Cabinet weight: 80kg
IP rating : IP65/54
Processing: 16 bit
Color : 281 trillion
Refresh rate : >9000HZ
Max power cascade connection : 5 cabinets
Operating temperature : -15-40 degree
Storage temperature: -20-60 degree
Operation humidity: 10-99%
Storage humidity: 10-90%



 >> Product Advantages


 1) Price Advantage: Best competitive price of the market.
 2) Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle...

 3) Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
 4) Service advantage: with professional service team for 24 hours service!

 >> Q&A



 1. What is the warranty on the panels?

The warranty is one year parts and labor on all of our products. Additional warranty terms can be negotiated during the sales process.



 2. How do your display mount?

DDWLED has created ways to mount all of our products to trussing, but we understand this isn’t always the right solution for permanent install. Our design team can help create custom frames and mounting specific to your installation.



 3. How many panels can the sending unit control?

The sending units is capable of controlling up to 1024 pixels (or 16 panels of 20mm) wide by 512 pixels (or 4 panels of 20mm) tall.
