HD Outdoor LED Billboard Real Full Color LED Wall Display Screen 20mm Pixels

HD Outdoor LED Billboard Real Full Color LED Wall Display Screen 20mm Pixels

  • High Light

    outdoor advertising led display

    ,

    outdoor full color led screen

  • Model Number DDW-OFCP1008
    320*320mm
  • Pixel led
    DIP346
  • Weight
    40kg
  • Working Temperature
    30°C - +50°C
  • Maximal power/m2
    750W
  • Density
    Density 10000dots/m2
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OFCP2003
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

HD Outdoor LED Billboard Real Full Color LED Wall Display Screen 20mm Pixels

HD Outdoor LED Billboard Real Full Color LED Wall Display Screen 20mm Pixels



 P20 outdoor led display tv advertising screen billboard is specially designed for the outdoor HD shows; LED lamp adopts standard φ5 oval DIP technology with high brightness and good heat dissipation. Every pixel is composed by two red, one green and one blue, which constitutes the virtual display effect; and the virtual resolution, is 4 times than that of the normal display. The colors of the display can be reached 10.7 billion kinds, and can display colorful dynamic and static images in real time, it has perfect display effect. The display supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs,VCD or DVD,live programs, and so on.

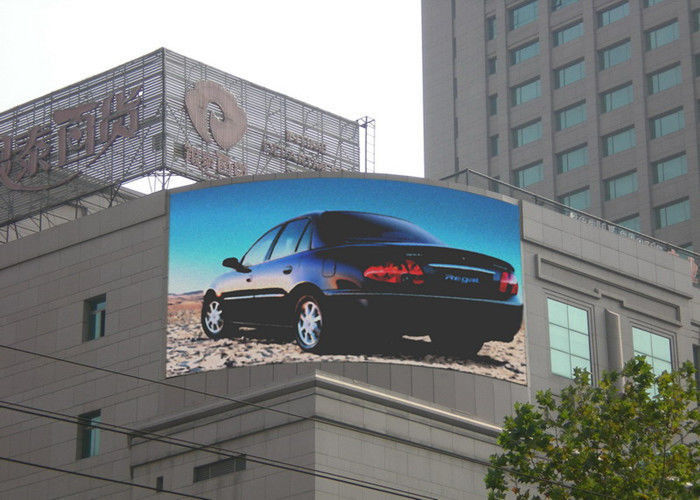

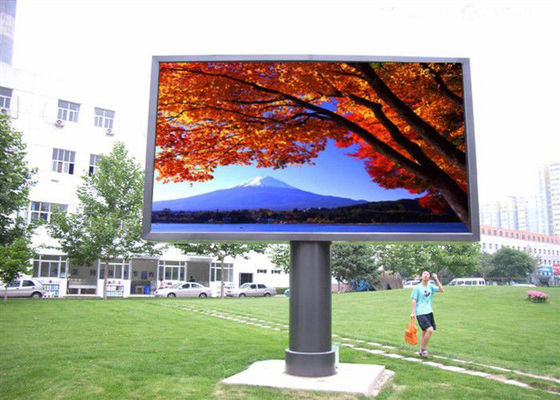

P20 outdoor full-color LED display adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.

>> Module Specification

Item Specification Parameter
Pixel type Real full color
Pixel color RGB
Module size 320*320mm
Pixel led DIP346
Pixels pitch 20mm
Resolution rate 32*32
Driving way 1/4
Driving IC MBI5024
Working voltage DC5V
Power 80W
Working temperature -30°C - +50°C


 >> Screen Specification

Item Specification
Material Aluminum
Color Black
Size 960*960mm
Resolution rate 96*96
Module quantity 3*3
Density 10000dots/m2
White balance luminance 7000-11000cd/m2
Color temperature 6500
Horizontal view angel 110
Vertical view angel 50
Protection grade Before/after: IP67/IP65
Non-Flatness <1mm
Module interval <1mm
Weight 40kg
Maximal power/m2 750W
Frame frequency ≥60Hz/s
Refresh frequency 800-3840Hz
Gray grade 1024*1024*1024Grade/1073741824
Luminance adjusted 256 grade by auto-optic/color &8 grade by hand
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
MTBF >5000h
Life-span >100000h
Speckles rate

<0.0001




 >> Main Advantage

 1). Good Chip from Taiwan,the video will be vivid and no flicker,and the lifespan will be longer,durable

 2). Waterproof and anti-dust structure,it can weather harsh application environment.

 3). good cabinet design size(960mm*960mm) it can be suitable for different project.

 4). seamless connect between each cabinet.
