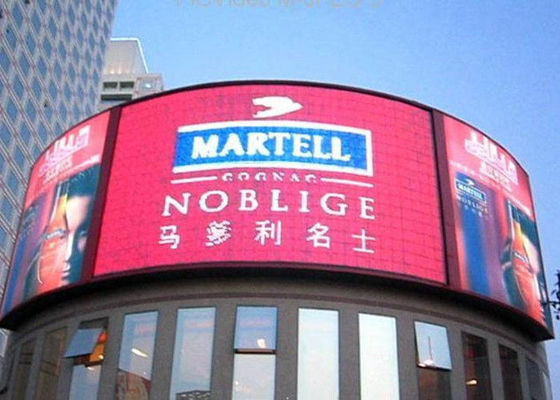

Programmable Full Color Outdoor Advertising LED Display 10000 Dots/M2 Density

Programmable Full Color Outdoor Advertising LED Display 10000 Dots/M2 Density

  • High Light

    outdoor advertising led display

    ,

    outdoor full color led screen

  • Pixel Pitch(mm)
    10mm
  • Density
    10000dots/m2
  • Weight
    40kg
  • Module Size(mm)
    320*320mm
  • Display Functio
    Video
  • IP Standard
    IP65
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OFCP1010
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

Programmable Full Color Outdoor Advertising LED Display 10000 Dots/M2 Density


Programmable Full Color Outdoor Advertising LED Display 10000 Dots/M2 Density



 - waterproof, lightning protection, radiation proof,

 - high brightness, good stability,

 - rich colors, large area display, long life

 - multi-choice cabinets (waterproof cabinets, simple box, die-cast box)

 - asynchronous or synchronous control



 >> Features



 · With super-high brightness LED, high contrast

 · High frame frequency, wider view angel

 · With module development and distributed scan

technology, high reliability

 · Universal AC input / full range

 · IP65 protection level, outdoor solution

 · PC synchronous or asynchronous control(optional)

 · Use common video play software, easy to use



Item Specification Parameter
Pixel type Real full color
Pixel color RGB
Module size 320*320mm
Pixel led DIP346
Pixels pitch 10mm
Resolution rate 32*32
Driving way 1/4
Driving IC MBI5024
Working voltage DC5V
Power 80W
Working temperature -30°C - +50°C



 >> Screen Specification



Item Specification
Material Aluminum
Color Black
Size 960*960mm
Resolution rate 96*96
Module quantity 3*3
Density 10000dots/m2
White balance luminance 7000-11000cd/m2
Color temperature 6500
Horizontal view angel 110
Vertical view angel 50
Protection grade Before/after: IP67/IP65
Non-Flatness <1mm
Module interval <1mm
Weight 40kg
Maximal power/m2 750W
Frame frequency ≥60Hz/s
Refresh frequency 800-3840Hz
Gray grade 1024*1024*1024Grade/1073741824
Luminance adjusted 256 grade by auto-optic/color &8 grade by hand
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
MTBF >5000h
Life-span >100000h
Speckles rate <0.0001



 >> Advantages for the p10 outdoor led display



 1. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.

 2. Light weight and small size: each cabinet size only 640mm*640mm*98mm, weight 12.8kg, frame 55mm.

 3. Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.

 4. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
 5. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
 6. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
