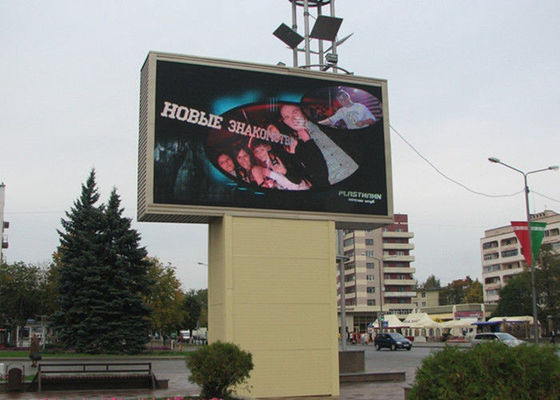

Pixel 12mm Video Led Display Outdoor Advertising Display Screens 16X16 Dots Module

Pixel 12mm Video Led Display Outdoor Advertising Display Screens 16X16 Dots Module

  • High Light

    outdoor advertising led display

    ,

    outdoor full color led screen

  • Module size
    192*192mm
  • Module density
    16*16dots
  • Brightness
    >8000nit
  • View angel
    120°/90°
  • Refresh Ratectio
    >=2,000 HZ
  • IP Standard
    IP65
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OFCP1203
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

Pixel 12mm Video Led Display Outdoor Advertising Display Screens 16X16 Dots Module

Pixel 12mm Video Led Display Outdoor Advertising Display Screens 16X16 Dots Module



 1. Highcontrast mask design: adopting independent bongrace design,
to avoid hydrops &dust retention, optimize sawtooth surface, enhance diffuse reflection
and improve the contrast of screen.

 2. Wide viewing angle: horizontal viewing angle can be up to 120°.
It is still colorful from any angle within 120.

 3. Module suite: improve the planeness of the whole screen, and reduce the seam between the neighboring modules.

 4. Multi gray display: adopting 16bit gray processing technology to restore the natural image. And using SPWM driving technology to add gray grade, meet the 16bits high gray display requirements with low brightness.

 5. Point by point correction: the correction technology of brightness and chromaticity to ensure the uniformity of led screen’s brightness and color.



Pixel Pitch 12mm Module size 192*192mm
Pixel configuration 1R1G1B Module density 16*16dots
View angel 120°/90° Pixel density 6,944dots/sqm
LED encapsulation DIP 346 Refresh Rate >=2,000 HZ
Pixel error rate <0.00001 Certification CE,ROHS,FCC,CCC
Cabinet size

Normal 1152mm x 1152mm

Or designed by requirements

Cabinet material Iron steel or Aluminum alloy

Cabinet thickness



< 8cm or

Designed by requirements

Cabinet weight

With fast lock

< =58kg/cabinet or

Designed by require

Driving Method



1/2 scan , constant current

Max power

consumption

850W/sqm
Brightness >8000nit

Type Power

consumption

300W/sqm
Working voltage AC110/220V +- 15% Working temp -20°C to +60°C

Best viewing

distance

>10m

Working humidity



10% ~ 90%
LED parameters

R:625±2.5nm,

IV:400-500mcd

MTBF >5000hours

G:525±2.5nm,

IV:800-2,200mcd

Gray Level >8192 grade per color

B:470±2.5nm,

IV:350-450mcd

Lifespan >100,000hours



 >> Advantage

 1. these serial creative products are ectension design from LED ultra slim indoor display

 2. slim and light weight cabinet design, minimum t Newest best rental led screen
video hickness is 6cm

 3. aluminum alloy material, light weight, only 6kg/pc full color indoor P5 led screen slim led video display

 4. hanging structure design, fast installation

 5. front maintenance, easy to maintain
