Outdoor 1R1G1B P10 7300cd/m2 Full Color Led Panel 270W

  • Outdoor 1R1G1B P10 7300cd/m2 Full Color Led Panel 270W
  • Outdoor 1R1G1B P10 7300cd/m2 Full Color Led Panel 270W
Place of Origin China
Brand Name DDW
Certification CE ROHS
Model Number P5
Minimum Order Quantity 1square meter
Price Negotiable
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Pixel 4mm Usage Outdoor,Indoor
Brightness 7300cd/m2 Pixel Resolution 64dots(W)*32dots(H)
Refresh Frequency ≥1920HZ Warranty 2years
High Light

1R1G1B Full Color Led Panel

,

7300cd/M2 Full Color Led Panel

,

270W Outdoor Smd Led Display
Leave a Message
Product Description

Outdoor full color P10 outdoor led advertise screen



Specification

1,slim cabinet desgin,high contrast,wide viewing angle,high ash and high brush,the picture is still clear and bright in direct sunlight,display true nature.



2, IP65/IP43 degree of protection, the use of fully waterproof module,modular suite of anti-UV,high temperature,protect the overall flatness of the screen body,super weather resistance make it without fear of inclement weather.



3,960*960mm standardized box,pan mouting holes the same size as a standard module.The boxes are common among the standard modules to ensure the consistency of the display effect and the box structure



P10 Outdoor DIP TECHNICAL PARAMETERS



Unit Module Item Parameter
Model Number P10-4S
Module size 160mm*160mm
Pixel pitch 10mm
Pixels Density 10000dots/m2
Pixel configuration 1R1G1B
Package mode DIP246
Pixel resolution 16dots(W)*16dots(H)
Max Power 16W
Module thickness 16-18mm
Weight 0.45kg
Drive type Constant drive
Scan mode 1/4scan
Port type hub75
Brightness of white balance ≥7300cd/m2

LED

Cabinet

 Dimension 640mm*640mm
Monomer Module Number 16
Power supply 5V/60A*1 pcs
Thermal discharge anto
Pixel per cabinet 64*64dots
Best viewing distance 6M～40M
Best viewing angle 160°(W) 120°(H)
Temperature

storage:-35℃～+85℃

working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 80mm
Power Working voltage AC220V±10%
Average Power consumption 270W/㎡
Max.Power consumption

≤680W/m2


Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

 Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Fire rate Grade one
Display Mode ≥800*600/1024*768

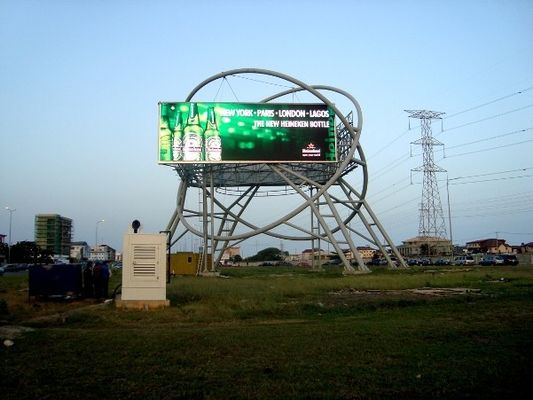

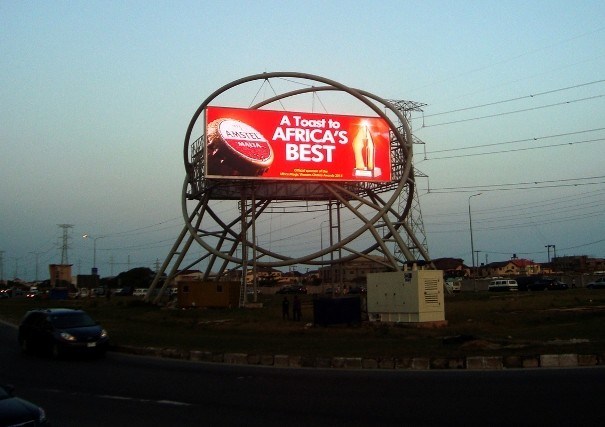

Outdoor 1R1G1B P10 7300cd/m2 Full Color Led Panel 270W 0Outdoor 1R1G1B P10 7300cd/m2 Full Color Led Panel 270W 1

Outdoor 1R1G1B P10 7300cd/m2 Full Color Led Panel 270W 2









FAQ



1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Whatsapp/Skype/email /phone, in case of any delays.

2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.

3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days

4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
