5500cd/M2 P10 Full Color Led Billboard 290W/M2 Iron Steel Cabinet

5500cd/M2 P10 Full Color Led Billboard 290W/M2 Iron Steel Cabinet

  • High Light

    P10 Full Color Led Billboard

    ,

    5500cd/m2 Full Color Led Billboard

    ,

    290W/M2 Steel Cabinet LED Display

  • Pixel
    10mm
  • Pixel Configuration
    Rgb 3in1
  • Module Size
    320x160mm
  • Pixel Density
    10000 Dots/sqm
  • Refresh Frequency
    ≥1920HZ
  • Warranty
    2years
  • Place of Origin
    China
  • Brand Name
    DDW
  • Certification
    CE ROHS
  • Model Number
    P5
  • Minimum Order Quantity
    1square meter
  • Price
    Negotiable
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

5500cd/M2 P10 Full Color Led Billboard 290W/M2 Iron Steel Cabinet

5500cd/m2 P10 Full Color Led Billboard 290W/m2 Iron Steel Cabinet

Product Description
(1) High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
(2) With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
(3) Weatherproof design, completely outdoor use.
(4) Easy for assembling and connection with the connector added.
(5) High color uniformity and clear image can bring you a vivid audio visual effect.
(6) Both front and rear access are available.
(7) The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
(8) Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.
(9) The maintenance of pixel and single led has been realized.
(10) Good quality raw material, accurate technique and careful inspection insures the high quality of led display.


Module Parameter

Pixel pitch 10mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3535
Module size 320x160mm
LED lamp KingLight or Nationstar
Module resolution 32x16dots


Cabinet Parameter

Cabinet size 960x960mm
Cabinet material Ironed steel cabinet
Cabinet weight 32.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 10000 dots/m²
Brightness ≥5500cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 10m
Max.power consumption 750W/m²
Avg.power consumption 290 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 65536
Refresh rate ≥1920Hz
MTBF ≥100,000 hours
Lifespan ≥50000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

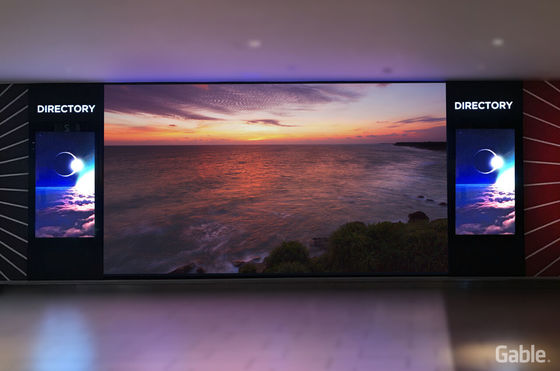

Our case
