Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-180-07555858
Product Details
Place of Origin: China
Brand Name: DDW
Certification: CE ROHS
Model Number: P5
Payment & Shipping Terms
Minimum Order Quantity: 1square meter
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Pixel: |
10mm |
Pixel Configuration: |
Rgb 3in1 |
Module Size: |
320x160mm |
Pixel Density: |
10000 Dots/sqm |
Refresh Frequency: |
≥1920HZ |
Warranty: |
2years |
Pixel: |
10mm |
Pixel Configuration: |
Rgb 3in1 |
Module Size: |
320x160mm |
Pixel Density: |
10000 Dots/sqm |
Refresh Frequency: |
≥1920HZ |
Warranty: |
2years |

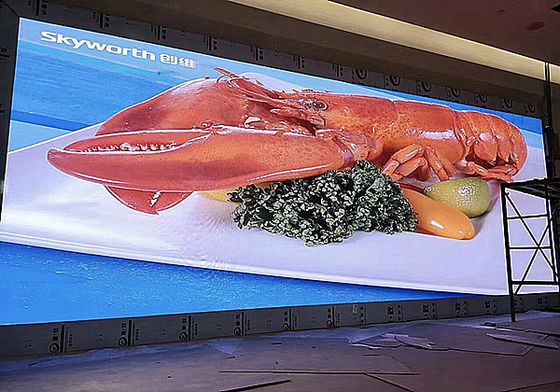

3-year warranty P6 Outdoor Fixed electric sign board impressive full color led screen type outdoor display
LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour! LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.
Led display screen now are widely applied in media advertising, transportation, Security, Real estate and Stage show background.
Module Parameter
| Pixel pitch | 6mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 192x192mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x32dots |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | Ironed steel cabinet |
| Cabinet weight | 32.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 27778 dots/m² |
| Brightness | ≥5500 cd/m² |
| Viewing angle | H≥120° V≥60° |
| Min.viewing distance | 6m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 330W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
