Product Details
Place of Origin: China
Brand Name: DDW
Certification: CE ROHS
Model Number: P5
Payment & Shipping Terms
Minimum Order Quantity: 1square meter
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Panel Size:: |
192mm*192mm |
Pixel Pitch: |
6mm, 6mm |
Scan Mode: |
1/8Scan |
Pixels Density: |
27777dot/M2 |
Refresh Frequency: |
≥1920HZ |
Warranty: |
2years |
Panel Size:: |
192mm*192mm |
Pixel Pitch: |
6mm, 6mm |
Scan Mode: |
1/8Scan |
Pixels Density: |
27777dot/M2 |
Refresh Frequency: |
≥1920HZ |
Warranty: |
2years |
High Brightness
Durable outdoor SMD led with 5500-7000nits high brightness to match different
occasions;
High Uniformity & Contrast
High quality led lamp and mask for super bright display and high contrast image;
Anti-UV Module
Anti-Oxidation module frame with anti-UV material to protect high temperature
ultraviolet radiation;
IP65 Waterproof Protect
With waterproof tape around the modules, prevent the rain and dust;
Reliable
Over 100000 working hours for longtime use;
Multi-Control Systems
Synchronous and asynchronous systems for option.
Module Parameter
| Pixel pitch | 6mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 192x192mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x32dots |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | Ironed steel cabinet |
| Cabinet weight | 32.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 27778 dots/m² |
| Brightness | ≥5500 cd/m² |
| Viewing angle | H≥120° V≥60° |
| Min.viewing distance | 6m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 330W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

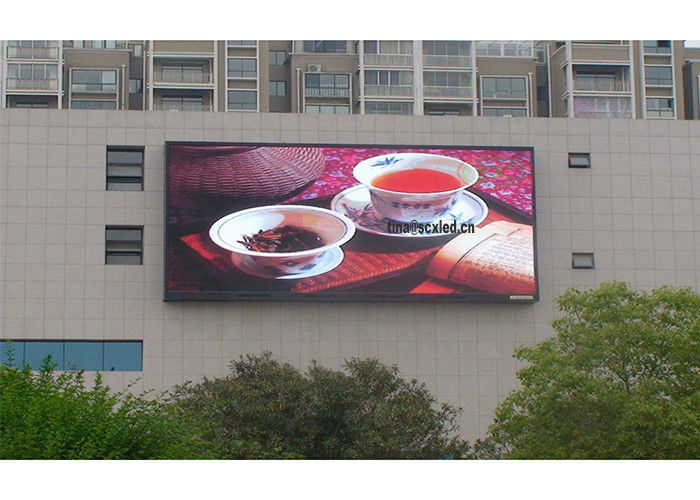

Our case
