5500cd/m2 P6 SMD3535 Outdoor LED Advesiting Wall 32x32dots

Place of Origin China
Brand Name DDW
Certification CE ROHS
Model Number P5
Minimum Order Quantity 1square meter
Price Negotiable
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Tube Chip Color FULL COLOR Display Function Video
Pixels 6 Mm Pixels Density 27777dot/M2
Refresh Frequency ≥1920HZ Warranty 2years
High Light

SMD3535 Outdoor LED Advesiting Wall

,

5500cd/M2 Outdoor LED Advesiting Wall

,

32x32dots Outdoor Led Video Display

Leave a Message
Product Description
P6 P8 P10 SMD3535 6000cd/m2 Outdoor Fixed Led Screen 330W/m2

As we all know our human is an visual creature ,everyone enjoy this beautiful and colorfu world l, and led display screen can provide pelope much more Visual enjoyment,then p6 led display is one high density and quality product of it,let’s start a visual feast together!

Applications



--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.


Module Parameter

Pixel pitch 6mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD3535
Module size 192x192mm
LED lamp KingLight or Nationstar
Module resolution 32x32dots


Cabinet Parameter

Cabinet size 960x960mm
Cabinet material Ironed steel cabinet
Cabinet weight 32.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 27778 dots/m²
Brightness ≥5500cd/m²
Viewing angle H≥120° V≥60°
Min.viewing distance 6m
Max.power consumption 900W/m²
Avg.power consumption 330W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 65536
Refresh rate ≥1920Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

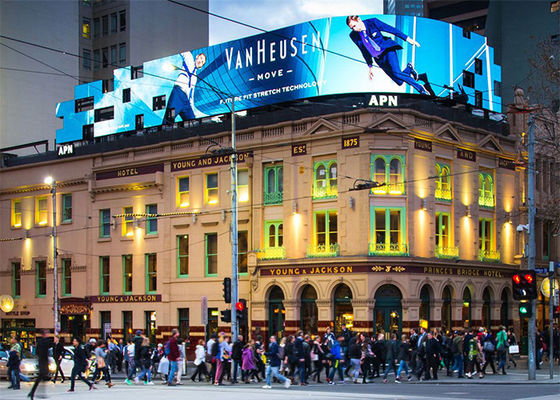

Our case



5500cd/m2 P6 SMD3535 Outdoor LED Advesiting Wall 32x32dots 05500cd/m2 P6 SMD3535 Outdoor LED Advesiting Wall 32x32dots 15500cd/m2 P6 SMD3535 Outdoor LED Advesiting Wall 32x32dots 25500cd/m2 P6 SMD3535 Outdoor LED Advesiting Wall 32x32dots 3



Our service



Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.


In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
