P8 SMD3535 10000pixels/sqm Advertising LED Billboard 200W

P8 SMD3535 10000pixels/sqm Advertising LED Billboard 200W

  • High Light

    SMD3535 Advertising LED Billboard


    10000pixels/sqm Advertising LED Billboard


    200W Outdoor LED Screen Panel

  • Resolution
  • Module Size
  • Type Of LED
  • Pixels Density
  • Refresh Frequency
  • Warranty
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1square meter
  • Price
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability

P8 SMD3535 10000pixels/sqm Advertising LED Billboard 200W

Outdoor High Brightness LED Screen Panel P8 Full Color Advertising LED Billboard


Product Features:


1. High resolution 10000pixels/sqm, HD nice video advertising effect.
2. SMD LED encapsulation confirm the high brightness even under strong sunlight
3. Good protection level waterproof IP65, anti-corrosion, oxidation resistance,long life span
4. Long viewing distance, High definition, Good uniformity
5. Brightness can be adjusted automatically according to different surroundings
6. Can be set to open and close the screen automatically
7. Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.
8. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
Product Specification:
P8 outdoor Full Color LED Display
Item Techinical Specifications
Pixel Pitch 8mm
LED Configuration SMD 3 in 1
Pixel Density 10000 pixels/sq.m
Module Size 256mm x 128mm
Module Resilution 32pixel x 16pixel
Cabinet Size 1024mm x 1024mm
Cabinet Resolution 96pixels x 96pixels
Cabinet Material Steel/Aluminum
Cabinet Weight 48kg/m2 or 40kg/m2
Brightness 5500cd/m2
Colour temperature 3500K-9500K(adjustable)
Viewing Angle H:160°/V:120°
Brightness Uniformity ≥97%
Brightness Adjustment Manual/Auto/Programmable
Ave. Power consumption 200W/m2
Max. Power consumption 600 W/m2
Input Voltage AC220V/50HZ or AC110V/60HZ (±10%)
Output Voltage 5V,40A
Best Viewing Distance ≥8m
Contrast ratio 5000:1
Frame rate 50/60 Hz/sec
Refresh rate ≥1200Hz
Grey scale levels R(256bit) x G(256bit) x B(256bit)
Display Colors R(1024) x G(1024) x B(1024)
Protection Level IP65
Life-span 100,000 hours
MTBF 10,000 hours
Malfunction dot rate < 0.0001
Storage Temp/Humidity -30~+60℃/10~90%RH
Operating Temp/Humidity -20~+50℃/10~90%RH
Drive Mode 1/8 scan
Control System Synchronous/Asynchronous/Wifi/3G Wireless for choosing
PC Operating System Microsoft Windows 7, 8, 98, 2000, XP and Vista

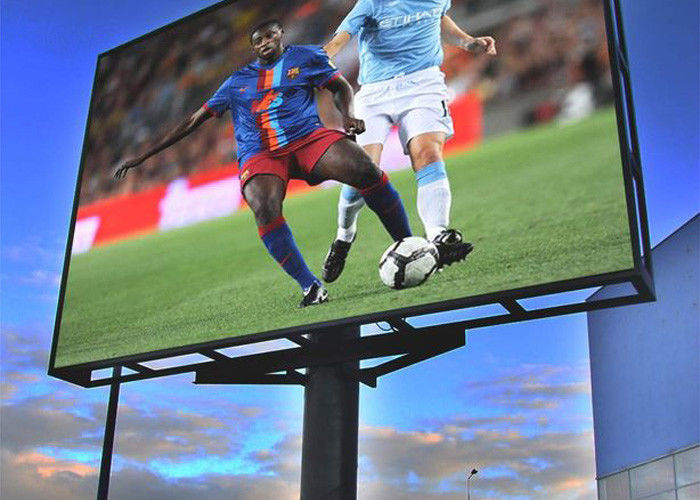

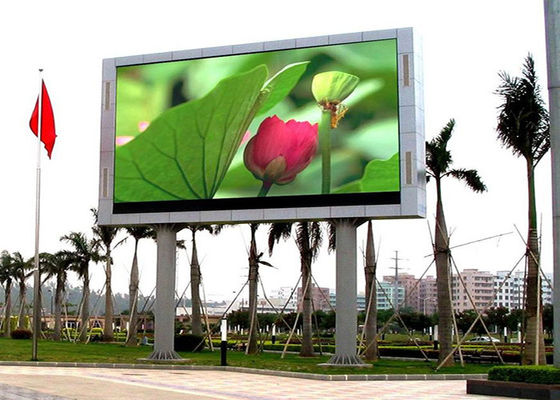

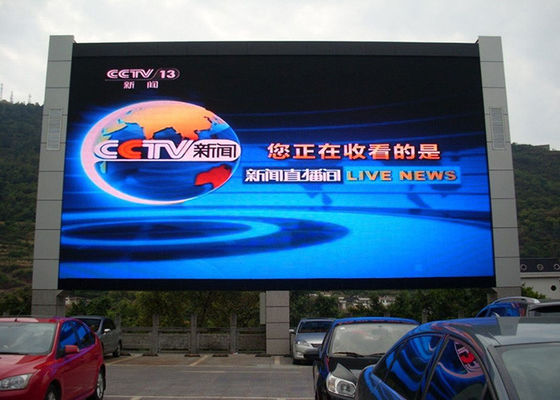

Our case
P8 SMD3535 10000pixels/sqm Advertising LED Billboard 200W 0
P8 SMD3535 10000pixels/sqm Advertising LED Billboard 200W 1
P8 SMD3535 10000pixels/sqm Advertising LED Billboard 200W 2

Our service
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
