ETL SMD2727 6000nits Outdoor Full Color LED Display

ETL SMD2727 6000nits Outdoor Full Color LED Display

  • ETL SMD2727 6000nits Outdoor Full Color LED Display
  • ETL SMD2727 6000nits Outdoor Full Color LED Display
  • ETL SMD2727 6000nits Outdoor Full Color LED Display
ETL SMD2727 6000nits Outdoor Full Color LED Display
Product Details:
Place of Origin: China
Brand Name: DDW
Certification: CE ROHS
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: 1square meter
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Contact Now
Detailed Product Description
Cabinet Size: 500*1000mm/500*500mm Module Size: 250*250mm
Material: Die-casting Aluminium Controller: Nova
Brightness: >6000nits Colours: 281 Trillion
High Light:

SMD2727 Outdoor Full Color LED Display

,

6000nits Outdoor Full Color LED Display

,

ETL Outdoor Led Video Display

Events Shows Outdoor Rental LED Display High Resolution LED Display





LED Display Outdoor Rental Parameter:

 BOR-III-3BOR-III-4
Physical Pitch3.91mm4.81mm
Pixel ConfigurationSMD1921SMD2727
Pixel Density65,536 pixels/m²43,264 pixels/m²
Module Dimensions(W*H)(mm)250*250250*250
Panel Dimensions(mm)500*500*75/500*1000*75500*500*75/500*1000*75
NO. of Modules Per Panel (W*H)2*2/2*42*2/2*4
Physical Resolution of Module(W*H)(mm)64*6452*52
Physical Resolution of Panel(W*H)(mm)128*128/128*256104*104/104*208
Panel MaterialDie-casting AluminumDie-casting Aluminum
Single Cabinet Weight9/15kg/panel9/15kg/panel
Processing16bit16bit
Colours281 trillion281 trillion
Contrast Ratio4,000:14,000:1
Average Power Consumption75/150 W/panel75/150 W/panel
Max Power Comsunption225/550 W/panel225/550 W/panel
Operating Temp/Humidity-20ºC-60ºC/10%-60%-20ºC-60ºC/10%-60%
Storage Temp/Humidity-30ºC-60ºC/10%-60%-30ºC-60ºC/10%-60%
Refresh Rate>1,920 Hz>1,920 Hz
Brightness>6,000 nits>6,000 nits
Horizontal Viewing Angle160°160°
Vertical Viewing Angle140°140°
Expected Lifetime100,000 Hrs100,000 Hrs
Max Stacking20/1020/10
Max Hanging20/1020/10
ServicingFront/RearFront/Rear
IP Rating(Front/Rear)IP 65/IP54IP 65/IP54
CertificationCCC,CE,ETL,RoHSCCC,CE,ETL,RoHS


Tipical Applications:

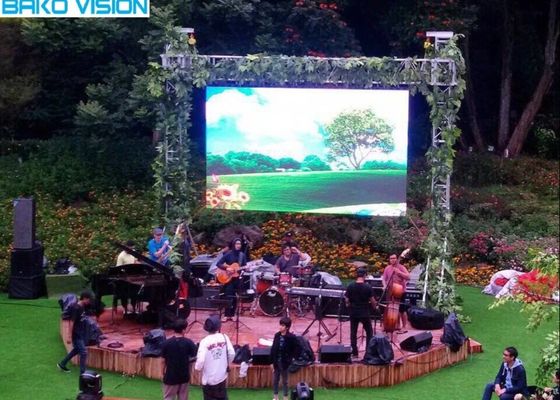

Stage rental, Shopping mall, DJ touring, Theme resort, Car show, Fahion store, House of worship, Window display, Reception hall, Opera house, Wedding hall, Events and conference.
Service:
1. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.
2. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment



LED Display Outdoor Rental Feature:
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.


2. Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.
ETL SMD2727 6000nits Outdoor Full Color LED Display 0
3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon effectively. The effect of the display will be more clear and exquisite.
ETL SMD2727 6000nits Outdoor Full Color LED Display 1

4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.
ETL SMD2727 6000nits Outdoor Full Color LED Display 2
5. Low release heat: low noise, low consumption, low cost, no fan design but excellent thermal design and excellent thermal dispersion.

6.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.
ETL SMD2727 6000nits Outdoor Full Color LED Display 3

7.Outdoor Rated:out door waterproof with IP65; suitable brightness adjustable for outdoor day and night; deep black levels, contrast ratio 4000:1.

ETL SMD2727 6000nits Outdoor Full Color LED Display 4


ETL SMD2727 6000nits Outdoor Full Color LED Display 5
